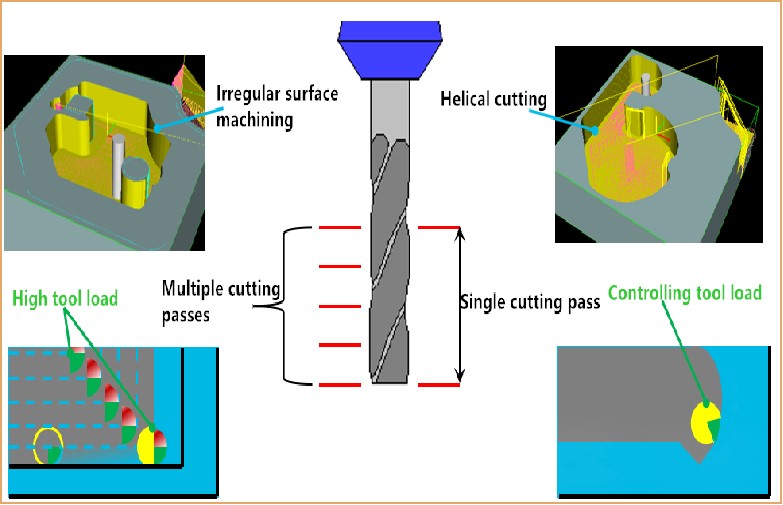

Advantages and Disadvantages of Full-Cutting and Layered Cutting on CNC Machines, and Their Requirements for Machines
Advantages and Disadvantages of Full-Cutting on CNC Machines, and Their Machine Requirements
Advantages:
1. High Processing Efficiency:
Full-cutting allows the removal of large amounts of material in a single pass, reducing the number of cutting paths and machining time. This is especially beneficial for relatively simple parts with significant stock, as it improves efficiency and shortens production cycles. For example, in rough machining of large mold blanks, full-cutting can quickly remove most of the material, saving time for subsequent finishing.
2. Better Surface Quality:
With appropriate machining parameters, full-cutting provides a more continuous cutting process, resulting in smoother tool trajectories on the workpiece surface. Compared to layered cutting, where each layer leaves visible tool marks, full-cutting achieves a more uniform and polished surface finish.
3. Even Tool Wear:
If the machine and tool can withstand the cutting forces, the wear on the tool during full-cutting is more uniform compared to the frequent tool engagement and disengagement in layered cutting. In layered cutting, the tool's entry into the workpiece generates significant impacts, accelerating localized tool wear.
In contrast, full-cutting offers a stable cutting condition, distributing wear evenly across the tool and extending its service life.
Disadvantages:
1. High Machine Requirements:
Full-cutting demands machines that can withstand large cutting forces and torque. Insufficient rigidity or power may result in increased vibrations, reduced precision, or even machine component damage. For instance, smaller CNC machines often lack the structural design and power to perform full-cutting.
2. High Tool Requirements:
Tools must possess high strength and wear resistance to endure the substantial cutting forces during full-cutting. Poor heat dissipation during full-cutting may lead to overheating, affecting tool life. As a result, the tool's material and coatings must meet higher standards.
3. High Risk of Machining Errors:
Incorrect machining parameters in full-cutting can result in over-cutting or under-cutting, compromising dimensional and shape accuracy. This is particularly challenging for complex-shaped parts, requiring precise programming and meticulous process control.
Machine Requirements:
1. High Rigidity:
The machine's bed, column, and guide rails must be rigid enough to withstand the significant cutting forces and torque of full-cutting without deformation or vibration.
2. High Power:
The spindle motor and feed motors must provide adequate power to ensure smooth material removal during full-cutting.
3. High Precision:
Although primarily used for rough machining, the machine must maintain sufficient precision to ensure that the part's dimensional and positional accuracy meet finishing requirements.
4. Effective Heat Dissipation:
Full-cutting generates significant heat, so the machine must dissipate heat effectively to maintain process stability and prolong tool life.
Advantages and Disadvantages of Layered Cutting on CNC Machines, and Their Machine Requirements
Advantages:
1. High Adaptability:
Layered cutting is suitable for parts with complex shapes, uneven stock, or high material hardness. It effectively avoids excessive resistance and stress on tools during machining, reducing tool damage and part deformation.
2. Ease of Precision Control:
Gradual removal of material allows better control over machining allowances and precision, preventing dimensional and shape errors caused by removing large amounts of material in one pass. Each layer can be measured and adjusted to ensure part accuracy.
3. Minimal Damage to Machines and Tools:
Layered cutting involves smaller cutting depths and lower cutting forces and torque, reducing stress on both machines and tools. This helps extend their lifespan and reduce production costs.
4. Simplified Programming:
For complex parts, layered cutting simplifies programming by breaking down intricate geometries into multiple straightforward layers, making it easier to manage.
Disadvantages:
1. Low Processing Efficiency:
Layered cutting requires multiple passes, increasing machining time and steps. This is particularly inefficient for large parts or batch production.
2. Potential Surface Quality Issues:
Each layer leaves tool marks, which may affect surface quality. While optimizing machining parameters and tool paths can mitigate these marks, layered cutting may not meet stringent surface finish requirements in some applications.
3. Uneven Tool Wear:
Although overall tool wear is relatively low, frequent tool engagement and disengagement can cause uneven wear, particularly along the cutting edge. This is more pronounced when machining harder materials.
Machine Requirements:
1. High-Precision Feed System:
Layered cutting requires a machine with a highly accurate and stable feed system to precisely control the feed amount and position for each pass, ensuring machining and dimensional accuracy.
2. Efficient Chip Removal:
Layered cutting generates substantial chips, so the machine must effectively remove chips to prevent accumulation from interfering with the machining process or affecting surface quality.
3. High Spindle Speed:
To enhance efficiency, the spindle must support high speeds, enabling high cutting speeds with small feed amounts and improving material removal rates.
