Challenges in Mold Structure and Corresponding Structural Analysis

Challenges in Mold Structure and Corresponding Structural Analysis

Mold design is a complex systems engineering task, requiring the integration of multiple functions such as forming, demolding, and cooling within a limited space. The following provides an in-depth analysis based on typical challenges, structural principles, and engineering practice:

I. Complex Parting Surface

Design Challenge Analysis

•Geometric Interference:

Intersection of multiple curved surfaces causes distortion of parting lines (e.g., 3D undercut structures in automotive grilles).

•Flash Risk:

Flash occurs when the parting surface gap exceeds 0.03 mm.

•Machining Feasibility:

Limited accessibility for 5-axis machining; root cleaning becomes impossible when tool interference angle is less than 15°.

Structural Solutions

1. Surface Splitting Strategy

•Primary Parting Surface Principle: Expand along the product's maximum projected contour.

•Insert Block Method: Divide undercut areas into independent inserts (with a clearance of 0.005–0.01 mm).

•Example: A drone shell mold adopted 7 movable inserts, reducing EDM machining workload by 40%.

2. Parting Surface Reinforcement Design

•Tongue-and-Groove Structure: Depth of 2–3 mm, angle of 60°, shear resistance improved by 3 times.

•Carbide Inserts: YG15 carbide blocks (hardness 90HRA) embedded in high-cycle opening/closing zones.

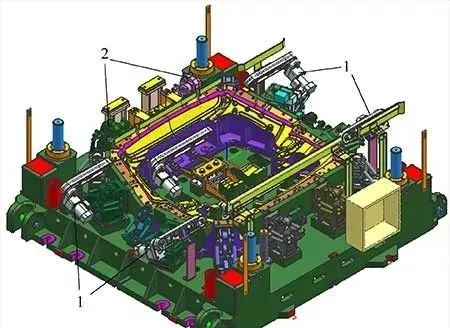

II. Side Core-Pulling Mechanism

Challenge Analysis

•Motion Interference:

Spatial conflict during coordinated movement of multiple sliders (e.g., threaded hole and latch core-pulling at the same time).

•Precision Retention:

Wear on angled pins over long-term use leads to stroke deviation exceeding 0.1 mm.

•Thermal Expansion Compensation:

Core-pulling jamming may occur due to gap variation under high-temperature conditions (>120°C).

III. Wear-Resistant Guiding Structure

•Double Needle Roller Bearing Guidance:

Friction coefficient reduced to 0.001, service life exceeding 1 million cycles.

•Self-Lubricating Bronze Bushings:

CuSn8 material with 15% graphite content, maintenance-free cycle of 6 months.

Ⅳ. Thermal Compensation Design

•Thermal Expansion Clearance:

ΔL = α × L × ΔT (α = 11.7 × 10⁻⁶ /℃, ΔT = mold temperature variation)

•Example:

A die casting mold slide remains a 0.12 mm expansion gap to compensate for a 100°C temperature change.

Ⅴ.Precision Guidance and Positioning

Challenge Analysis

•Concentricity Deviation:

Misalignment > 0.03 mm due to guide pin/bushing tolerance during mold closing.

•Long-Term Stability:

Pin hole deformation (ovality > 0.01 mm) under repeated impact.

•Multi-Plate Synchronization:

Drag marks caused by abnormal opening sequence in three-plate molds.

Structural Solutions

1. Multi-Stage Guiding System

•Primary Guidance: Four corner φ30 mm guide pillars (H7/g6 fit)

•Precision Alignment: Central φ12 mm tapered dowel pin (taper 1:50, interference fit 0.005 mm)

•Example: Connector mold with 3-stage guidance achieves ±0.003 mm mold closure accuracy.

2. Impact-Resistant Structure

•Disc Spring Preload Mechanism: Preload force = 1.2 × max impact force

•Damping Hydraulic Cylinder: Buffer stroke accounts for 20% of total travel, vibration reduction efficiency > 60%

Ⅵ. Cooling System Optimization

Challenge Analysis

•Thermal Balance Control:

Temperature difference > 30°C between deep cavity and thin-walled regions.

•Flow Distribution Imbalance:

Parallel water lines with pressure difference > 15% reduce cooling efficiency.

•Space Constraints:

Cracking risk when water lines are < 2 mm from cavity surface in complex cores.

Structural Solutions

1. Topology Optimization Design

•Conformal Cooling Channels:

3D printed to maintain 1.5–2 mm distance from cavity surface, heat transfer efficiency improved by 50%.

•Example:

316L stainless steel conformal cooling channels used in mobile mid-frame mold, cooling time reduced to 8 seconds.

2. Flow Control Technology

•Adjustable Flow Restrictor Valve:

Flow deviation controlled within ≤5% across circuits.

•Spiral Turbulence Insert:

Reynolds number Re > 4000, heat transfer coefficient increased by 30%.

Ⅶ. Microstructure Precision Molding

Challenge Analysis

•Micro Machining:

Breakage risk when straightness of Φ0.2 mm ejector pin exceeds 0.005 mm.

•Air Trapping Difficulty:

Incomplete filling due to air entrapment in micro-hole areas (air pocket rate > 5%).

•Ejection Damage:

Ejection drag damage rate > 20% for rib features with aspect ratio > 5:1.

Structural Solutions

1. Micro Machining Process

•Micro EDM:

Φ0.1 mm electrode machining, surface roughness Ra ≤ 0.1 μm.

•Laser Etching:

Texturing depth of 0.02 mm for gas venting or ejection assistance.

2. Compound Ejection Mechanism

•Gas + Pin Ejection Synergy:

0.5 MPa air pressure combined with Φ0.3 mm pin array.

•Example:

Optical lens mold reduces ejection force from 200 N to 50 N.

Ⅷ. Multi-Material Composite Mold

Challenge Analysis

•Interface Bonding:

Delamination due to differential shrinkage between metal and plastic (e.g., PA66 vs. stainless steel).

•Thermal Field Conflict:

Contradiction between insert preheating and plastic cooling.

•Positioning Accuracy:

Flash occurs when in-mold insert shift > 0.02 mm.

Structural Solutions

1. Dynamic Temperature Control System

•Zonal Heating:

Insert zone at 150°C vs. plastic zone at 80°C, independently PID-controlled.

•Example:

Automotive door panel mold with embedded aluminum inserts, temperature deviation controlled within ±3°C.

2. High-Precision Positioning Mechanism

•Electromagnetic Chuck:

Vacuum adsorption + magnetic fixation, positioning accuracy ±0.005 mm.

•Vision Correction System:

Real-time CCD detection with feedback compensation.

Summary: Mold Structural Design Methodology

1. Contradiction Matrix Analysis:

Seek optimal balance among strength, precision, and durability.

2. Modular Design:

Decompose complex structures into standardized units (e.g., HASCO standard components).

3. Digital Twin Verification:

Use Moldflow/Deform simulation to predict issues in advance.

Future Trends:

•Smart Molds:

Integration of pressure/temperature sensors for closed-loop control.

•Metamaterial Applications:

Gradient materials enable localized performance customization.

•Green Design:

Removable structures increase material recyclability to over 95%.

Through systematic structural innovation, mold life can be extended from 500,000 to 2,000,000 cycles, and product yield can be improved to above 99.9%.
