Complex Bent Pipe Mold: Challenging to Design, Even Harder to Demold

Complex Bent Pipe Mold: Challenging to Design, Even Harder to Demold

Molds for bent pipe parts are generally complex, with the main difficulty lying in the demolding mechanism. This article uses 3D visuals to briefly illustrate the design of a common mold for an automotive filter pipe.

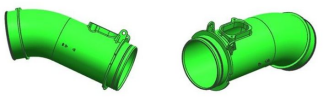

1. Product Structure Diagram

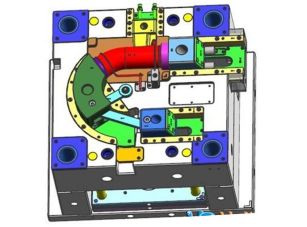

2. Rear Mold Assembly Diagram

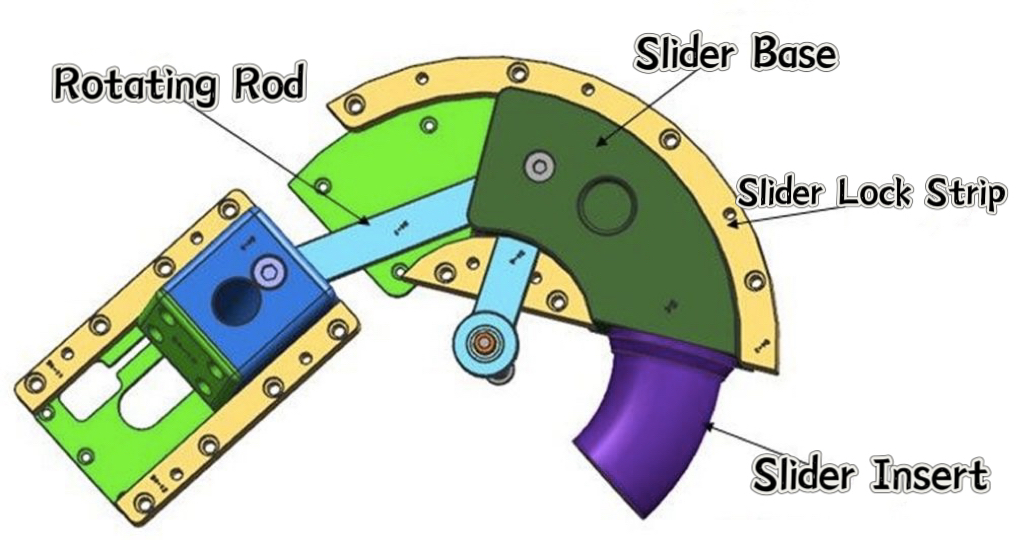

3. Demolding Mechanism Diagram for Bent Pipe

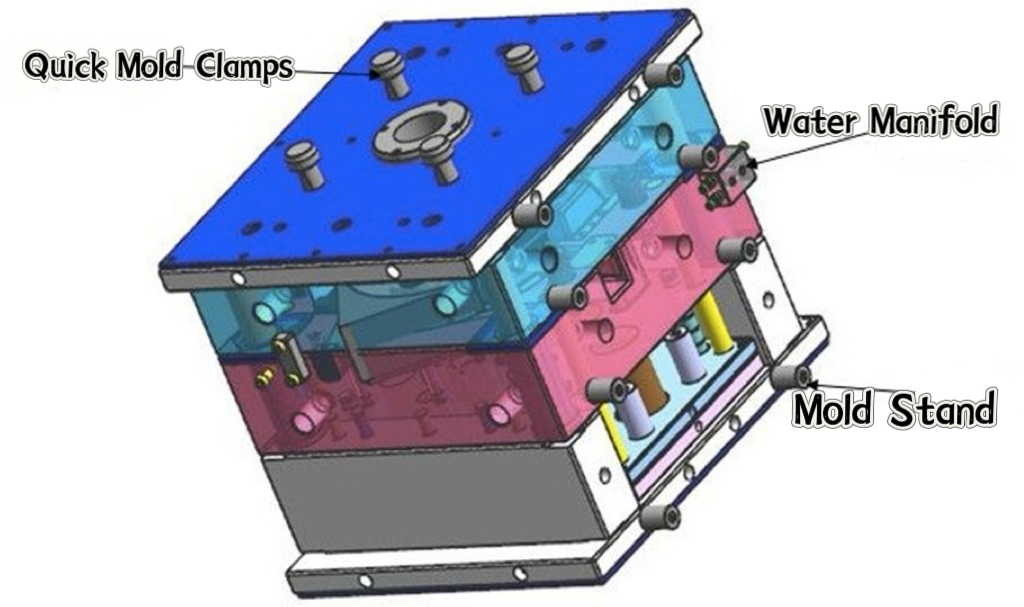

4. Complete Mold Set
