Application of Plastic Mold Steels

In the early stages of mold design, many people are uncertain about how to select the most suitable mold steel, except when a specific material is designated by the client. They often lack clarity on whether their choice is appropriate. It’s common to hear questions like, “What material should we use for this locating ring?” or “What material is suitable for this slide core?” or “What material should we use for the pressure pad?” A basic understanding of commonly used mold steels is essential.

Material Selection in Mold Design

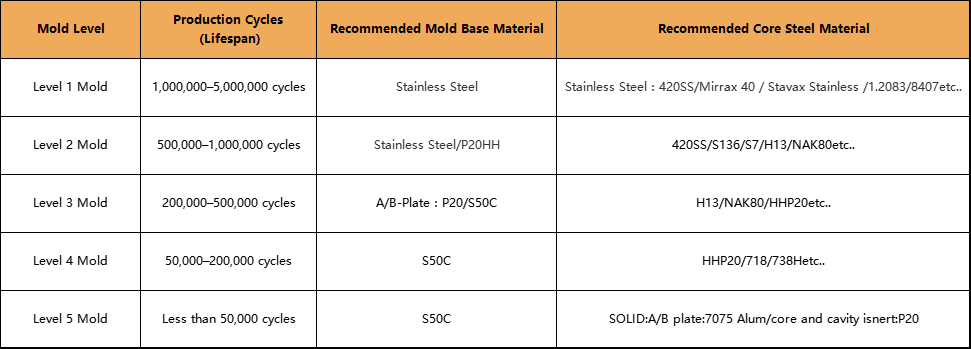

Choosing mold steel is essentially deciding on the mold's production lifespan. It is crucial to consider whether the client’s required production cycles are 300,000, 500,000, 1,000,000, or even higher. Molds are classified into different levels based on the number of production cycles they are designed for, including Level 1, Level 2, Level 3, Level 4, and Level 5 molds. Each mold level requires different material selections. Let’s take a closer look at the steel materials used for molds at each level.

Guidelines for Selecting Mold Steel

General Material Selection

The recommendations provided above represent a standard approach to selecting mold steel under normal circumstances. However, in specific situations, such as when working with corrosive plastic materials, all steel components that come into contact with the plastic must be made of corrosion-resistant materials.

Key Considerations for Steel Selection

When designing a mold, selecting the right steel requires a thorough understanding of two key factors:

1. Application and Functionality: First, you must have a clear understanding of the specific use and functional requirements of the part you are designing.

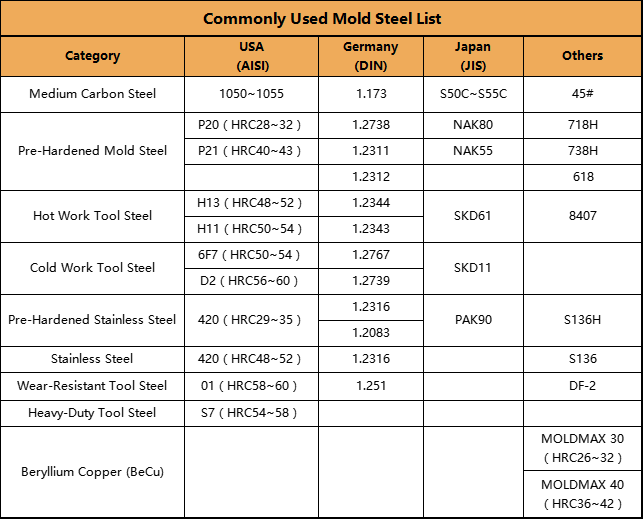

2. Steel Properties: Second, you need to be familiar with the characteristics of commonly used plastic mold steels to ensure you make an informed decision.

By combining these insights, you can select the most appropriate material for the mold. Additionally, when asked why a particular steel was chosen, you should be able to provide a logical and well-supported explanation.

Special Requirements for Moving Parts

For certain components like inserts, sliding parts, or angled lifters, it is critical to select steel with a hardness that differs from the mold core. The hardness difference should be at least 4 HRC. This consideration is crucial for ensuring the mold’s lifespan and preventing issues like component seizure or excessive wear during mold testing and production.

By following these principles, mold designers can ensure better performance and durability for their molds under various working conditions.
